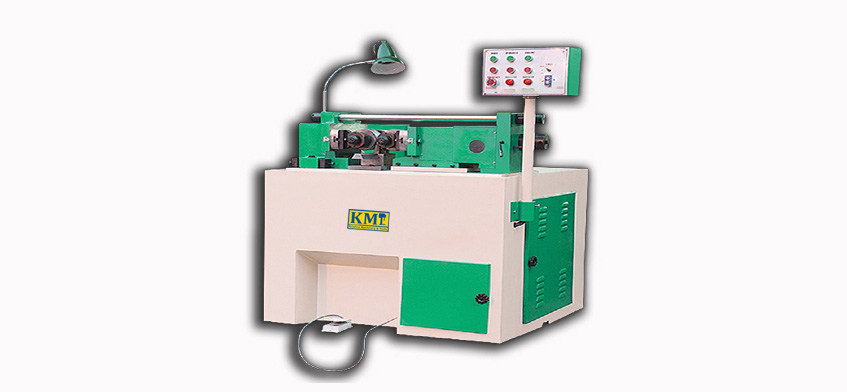

2 Roll Thread Rolling Machine

We are engaged firm offering highly efficient Thread Rolling Machine that is used for various purposes in industries. Under the supervision of our skilled professionals, we manufacture these machines by using optimum quality components and progressive technology. The offered machine can be installed easily and work smoothly. Its unique design concept is primarily aimed at covering the widest universal range of applications

MODEL

KMT-80A

KMT-42D

KMT-24B

Work piece Ø (in feed)

10-80mm

3-50mm

3-24mm

Max pitch of thread (Standard V Thread)

10mm

5mm

3mm

Max serrations pitch

3mm

1.6mm

1.0mm

Max. Die. Width

200mm

150mm

80mm

Max. Through feed thread length

6 meter

6 meter

6 meter

Max. Rolling Force (infinitely adjustable)

30 tons

16/20 tons

8 tons

Spindle Axis swivel for through feed

120

50

50

Roll spindle Ø

69.85mm

54mm

40mm

Max Rolling Die Ø

220mm

180mm

120mm

Roll spindle speed (RPM)

16/22/34/73/110/150

20/40/60

60/90

Main Motor

11 kW

3.7 kW/5.6 kW

2.2kW

Hydraulic power pack motor

2.2 kW

1.5 / 2.2 kW

0.75 kW

Coolant pump

1/2 HP

1/8 HP

1/8 HP

Electrical connection

415 V, 50 Hz, 3 Phase

 415 V, 50 Hz, 3 Phase

415 V, 50 Hz, 3 Phase

Salient Features

  • Fabricated steel frame
  • Hardened & ground “T” Type slide for better accuracy & rigidity
  • Range of cycle time & rolling speeds
  • High production rate
  • User friendly setup & running procedure
  • Low pressure hydraulic power pack to ensure to low heat & minimum maintenance
  • High efficient & heavy duty gear box for continues operation
