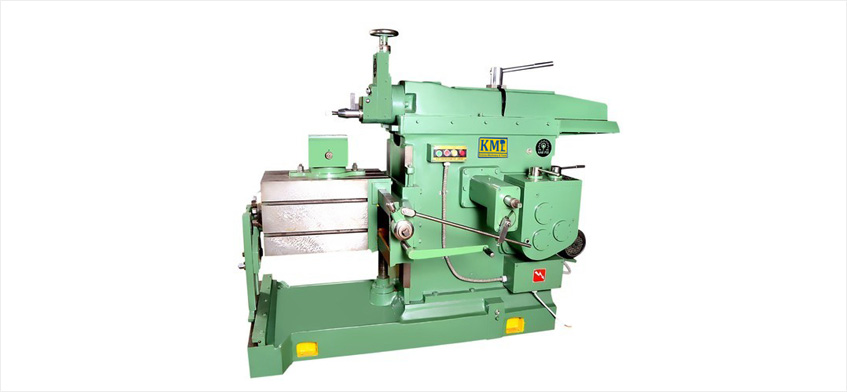

All Geared Shaping Machine
We are leading manufacturer and supplier of high quality All geared shaping machine. The Gear Shaper Machines, provided by us, have a well ribbed based, which provides stability and can be fitted on foundation bolts. Our supplied shaping machine is made from high-grade iron alloy and close grained, C.I casting conforming to IS: 210 ensure long life of the machine. All alignments confirm IS: 2310 – 1989. All the components manufactured are inspected and approved by qualified and experienced engineers at every stage.
|
MODEL |
KMT-18-AG |
KMT-24-AG |
KMT-30-AG |
KMT-32-AG |
KMT-36-AG |
|
Length of Ram stroke |
18'' |
24'' |
30'' |
32'' |
36'' |
|
Length Of Ram |
39'' |
48'' |
54 ¼'' |
63 ¼'' |
66 ½'' |
|
Length & width of Ram bearing |
30 x 10 ½ |
36 x 11 |
41 x 11 |
44 ½ x 12 |
45 ½ x 12 |
|
Max. & Minimum distance from table to Ram |
16 x 3 ½ |
18 x 3 ½ |
20 x 4 ½ |
19 ½ x 5 ½ |
20 ½ x 5 ½ |
|
Table |
|||||
|
Working surface of Table |
16 x 11 ½ |
19 x 13 |
24 x 14 ¼ |
15 x 31 ¾ |
18 x 36 |
|
Max. Table Travel – Horizontal |
20 |
24 |
30 |
31 ¾ |
34 ¼ |
|
Max. Table Travel – Vertical |
13 |
14 ¾ |
17 |
15 ¼ |
15 ¼ |
|
Angular Movement of Table on either side |
600L 600R |
600L 600R |
600L 600R |
600L 600R |
Fixed |
|
Tool Head |
|||||
|
Maximum size of Tool Shank accommodated |
1 ¼ x 5/8 |
2 x 13/16 |
2 x 7/8 |
1 ½ x 7/8 |
1 ½ x 7/8 |
|
Max. Vertical Travel of Tool Slide |
6 |
6 |
6 |
7 |
7 ¾ |
|
Max. Swivel of Tool Head |
60L 60R |
60L 60R |
60L 60R |
60L 60R |
60L 60R |
|
Speeds & Feeds |
|||||
|
Stroke per minute |
4 ,17,25,50,75 |
4 ,12,24,40,72 |
4 ,10,24,45,70 |
4 ,12,25,40,67 |
4 ,12,25,40,67 |
|
Range of Table feed per stroke of Ram |
.009 |
.009 |
.009 to 0.027 |
.009 to 0.27 |
.009 to 0.27 |
|
Range of Tool Head Feed |
Hand Feed |
Hand Feed |
Hand Feed |
Hand Feed |
Hand Feed |
|
Electrical Equipments |
|||||
|
3 Phase Electric Main Drive Motor |
2 H.P. |
3 H.P. |
5 H.P. |
5 H.P. |
5 H.P. |
|
Speed R.P.M. |
960 R.P.M. |
960 R.P.M. |
960 R.P.M. |
960 R.P.M. |
960 R.P.M. |
Standard Accessories
- Swiveling vice.
- Automatic oil lubrication pump.
- Motor pulley
- Instruction and maintenance manual
Extra Accessories
- Electric motor
- Dol starter
- Key way cutting attachment
- Automatic tool lilting device
- Automatic feed to the tool slide
- Rapid feed system with control panel,
- Allen key set. v-belts, crank handle, spanner set, screw driver oil can. tool box.
Technical Features
- Duly seasoned alloyed high duly castings
- The solidly built construction ensures vibration-free working
- Ram alignment with taper lib strip
- Automatic lubrication feature
- The shaft are made up of steel alloy
- The double jack system save the time from digging of pits
- All alignments maintained as per geometric alignment test is : 2310-1989
- The universal/fixed table is variable
- Automatically gives result on horizontal traverse.
- The tool slide is spinning 90 degrees either way
- The parts can be interchanged
- The quality of the machine is checked and ensured before delivering
- High performance and accuracy in result guaranteed.
