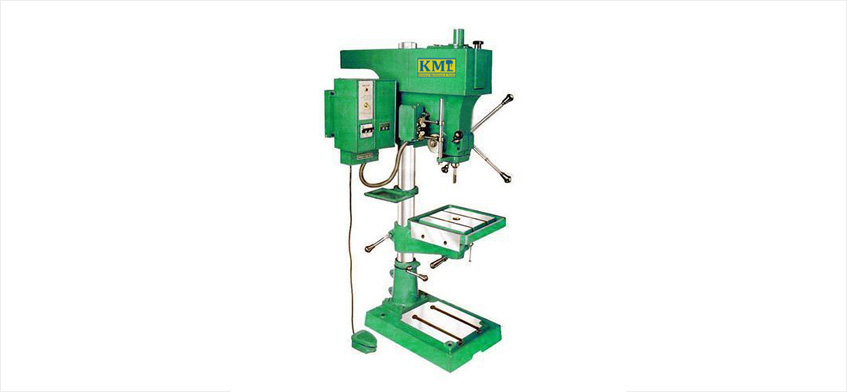

Drilling Cum Tapping Machine
We are manufacturing & supplying Drilling cum Tapping Machine all over India. These Tap Drill machines are custom designed and fitted with special best quality bearings. With the help of this Drilling Cum Tapping Machine you can do drilling and threading process simultaneously. Reliable branded electrical components are fitted in tapping attachment / electrical panel for economical high precision production of drilling and tapping operation. This Universal Tapping machine is suitable to tap any type of thread inside a vertical hole. These Drilling cum Tapping machines are easy to operate and for mass production & tool room jobs.
|
MODEL |
KMT-20DCT |
KMT-25DCT |
|
Drilling capacity in steel |
20mm |
25mm |
|
Drilling capacity in cast iron |
22mm |
32mm |
|
Tapping capacity in steel |
12mm |
25mm |
|
Tapping capacity in cast iron |
16mm |
25mm |
|
Morse taper in spindle |
MT-2 |
MT-3 |
|
Spindle travel |
125 |
165 |
|
Pillar diameter |
72 |
90 |
|
Pillar length |
1065 |
1220 |
|
Distance btw centre of spindle & pillar front |
206 |
240 |
|
Max distance btw spindle & table |
410 |
560 |
|
Max distance btw spindle & base |
785 |
1065 |
|
Table working surface |
280 x 280 |
370 x 370 |
|
Base working surface (machined) |
265 x 290 |
395 x 340 |
|
Overall size of base |
571 x 310 |
610 x 370 |
|
No of spindle speeds |
8 |
8 |
|
Range of spindle speeds (rpm) |
80 - 150 - 250 - 430 - 510 - 920 - 1590 - 2850 |
80 - 150 - 220 - 320 - 580 - 950 - 1420 - 2100 |
|
V Belt |
A-44 |
B-54 |
|
Motor |
1H.P, 1400rpm, 3 Phase |
1H.P, 1400rpm, 3 Phase |
|
Net weight |
130kg |
240kg |
|
Space occupied (L x B x H) |
710 x 430 x 1200 |
870 x 480 x 1400 |
Salient Features
- Drilling cum Tapping machines are Highly versatile for Tapping, Drilling, Reaming and Screwing at preset depth.
- Simple to install, simple to operate, no extra skill required.
- Dual operation of Tapping and Drilling without any extra attachment. The mere flick of switch sets the machine from Tapping to Drilling and vice-versa.
- Automatic reversal of spindle at preset depth and changes the direction of spindle automatically back to normal.
- Simple back gear arrangement facilitates 8 spindle speeds to suit the cutting speeds.
- Emergency reversing foot switch to avoid tap breakage.
- Being an electrical switch gear unit no wear and tear and hence no maintenance is required
- Machine Accuracy as per IS 2425
