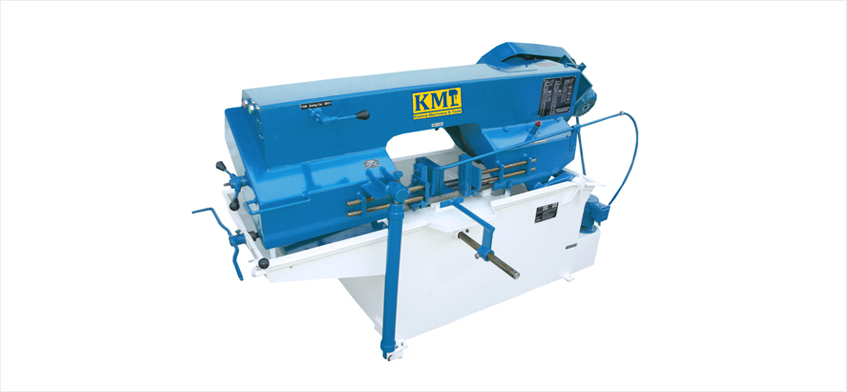

Manual Band Saw Machine
We are one of the leading manufacturer and supplier of Metal Band Saw Machine. we are occupied in offering high quality Band Saw Machine. All function of machine work manually, Job feeding, clamping-decamping & lifting of the swiveling arm after job cutting is done manually. After cutting job, machine stop automatically. To cut large, wide & harden material. it can cuts round bars, Square, flats, pipes, angels, channels & structural steel. It also can cut various types of materials like mild steel, alloy steel, stainless steel. Brass copper, aluminum.
|
MODELS |
KMT-1 HS |
KMT-2 HS |
KMT-3 HS |
KMT-4 HS |
KMT-5 HS |
KMT-6 HS 250 |
KMT-7HS 500 |
|
Capacity Round |
200 mm |
300 mm |
350 mm |
400 mm |
450 mm |
250 mm (NEW) |
500 mm (NEW) |
|
Capacity Square |
175 mm |
275 mm |
325 mm |
375 mm |
425 mm |
225 mm |
475 mm |
|
Drive Motor |
1 HP |
2 HP |
2 HP |
2 HP |
2 HP |
1.5 HP |
3 HP |
|
440v AC 3 phase |
1440 RPM |
1000 RPM |
1000 RPM |
1000 RPM |
1000 RPM |
1440 RPM |
1000 RPM |
|
Coolant Pump |
0.15 HP |
0.15 HP |
0.15 HP |
0.15 HP |
0.25 HP |
0.15 HP |
0.25 HP |
|
440v AC 3 phase |
440 Volts |
440 Volts |
440 Volts |
440 Volts |
440 Volts |
440 Volts |
440 Volts |
|
Blade Dim in mm |
3000 x 27 x 0.9 |
3760 x 34 x 1.1 |
4100 x 34 x 1.1 |
4420 x 34 x 1.1 |
4570 x 34 x 1.1 |
3300 x 27 x 0.9 |
4600 x 34 x 1.1 |
|
Blade Speed |
20-35-55-75 |
20-35-55-75 |
20-35-55-75 |
20-35-55-75 |
20-35-55-75 |
20-35-55-75 |
20-35-55-75 |
|
Approx Dim in mm L x W x H |
1630 x 750 x 870 |
2400 x 930 x 1050 |
2550 x 930 x 1050 |
2650 x 930 x 1215 |
2750 x 930 x 1225 |
2000 x 750 x 950 |
3000 x 930 x 1400 |
Special Accessories
- High productivity with low rate saves your idle time faster than hacksaw machine
- Improved heavy duty oil filed gear box (synthetic oil)
- Specially designed hydraulic feed control jumper system
- Chip collecting trey for keeping fresh coolant water
- Superb carbide wear pad blade guide system
- Swing cut facility for fast cutting for harden job
- Chip removing wire brush for continues clean the blade (only in KE-1HS & KE-6HS model)
Optional Accessories
- Single phase is available
- Swivel vice assembly for angular cutting
- Job roller stand
- Infinitely variable speed control by A.C. frequency drive
- Bi-metal band saw blade
- Semi auto device for auto arm lifting / feeding & vice clamping / declamping by hydraulic system
- Auto lifting device for auto arm lifting / feeding
