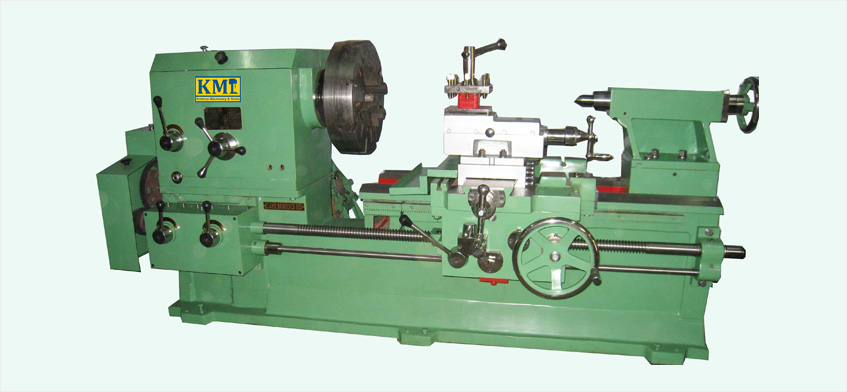

Heavy Duty Lathe Machine
We are offering a comprehensive range of Heavy Duty Lathe Machine. which are extensively used in wide range of industrial applications. Further, designed flawlessly and built to tight tolerances our Lathe Machines are compact in size and offer value for money. Being an eminent organization in the industry, we are involved in providing a premium quality range of Heavy Duty Lathe Machines with under mentioned specifications.
|
MODELS |
KMT-210 |
KMT-260 |
KMT-305 |
KMT-305A |
KMT-400 |
KMT-400A |
KMT-460 |
KMT-460A |
KMT-510 |
|
Length of bed |
4.1/2'(1370mm) |
5ft(1525mm) |
7'(2135mm) |
10.1/4"(3150mm) |
8.1/4'(2515mm) |
12.1/4'(3735mm) |
8.1/4'(2515mm) |
12'2"(3710mm) |
16'1 (4905mm) |
|
6'(1825mm) |
6.1/2'(1980mm) |
8.3/4"(2665mm) |
12'(3660mm) |
10.1/4'(3125mm) |
16.1/4'(4955mm) |
10'2"(3100mm) |
20'5" (6225mm) |
||
|
Width of bed |
11"(280mm) |
13"(330mm) |
15"(380mm) |
15"(380mm) |
18"(460mm) |
18"(460mm) |
21"(535mm) |
21"(535mm) |
21" (535mm) |
|
Centre height |
9"(230mm) |
10.1/2''(265mm) |
12"(305mm) |
12"(305mm) |
16"(405mm) |
16"(405mm) |
18"(460mm |
18"(460mm) |
20" (510mm) |
|
Spindle bore |
1.3/4"(45mm) |
2"(50mm) |
2.5/8''(65mm) |
2.5/8"(65mm) |
3.3/8"(85mm) |
3.3/8"(85mm) |
4.1/8"(105mm) |
4.1/8"(105mm) |
4.1/8' (105mm) |
|
ABC |
22'(560mm) |
22''(550mm) |
40"(1000mm) |
80"(2000mm) |
47"(1200mm) |
95"(2400mm) |
38"(965mm) |
132' (3350mm) |
|
|
34'(865mm) |
40"(1000mm) |
60"(1500mm) |
100"(2500mm) |
71"(1800mm) |
143"(3625mm) |
60"(1500mm) |
85"(2150mm) |
184' (4675mm) |
|
|
Swing over bed |
18"(460mm) |
21''(535mm) |
24"(610mm) |
24"(600mm) |
32"(815mm) |
32"(815mm) |
36''(915mm) |
36''(915mm) |
40' (1000mm) |
|
Swing Over cross slide |
10"(255mm) |
12"(305mm) |
14.1/2"(370mm) |
14.1/2''(370mm) |
20"(510mm) |
20"(500mm) |
24"(610mm) |
24"(610mm) |
26' (660mm) |
|
Gap distance |
7"(180mm |
8"(205mm) |
8.1/2"(215mm) |
8.1/2"(215mm) |
13.1/2"(345mm) |
13.1/2''(345mm) |
19"(485mm) |
19"(485mm) |
19' (485mm) |
|
Gap depth from centre |
11.1/2''(290mm) |
14"(355mm) |
18"(460mm) |
18"(460mm) |
23"(585mm) |
23"(585mm) |
27"(685mm) |
27"(685mm) |
29' (735mm) |
|
Swing in gap |
23''(585mm) |
28"(710mm) |
36"(915mm) |
36"(915mm) |
46"(1170mm) |
46"(1170mm) |
54"(1370mm) |
54"(1370mm) |
58' (1475mm) |
|
Dia of lead screw |
1.1/2"(38mm) |
1.1/2"(38mm) |
1.3/4"(45mm) |
1.3/4"(45mm) |
2"(50mm) |
2"(50mm) |
2.1/4"(60mm) |
2.1/4"(60mm) |
2.1/2' (65mm) |
|
H.P. Reqd |
1 HP for both) |
2HP for both |
3 HP for both |
3 HP for both |
5 Hp for both |
5 HP for both |
5 HP for both |
5 HP for both |
7.5HP for both m/c |
Standard Accessories
- Steady Rest
- Follow Rest
- M.T. Center
- Tray Coupling for Chuck
- Face Plate
- Change Gear Set
- Motor Pulley
Optional Accessories
- Telescopic Taper Turning attachment - Revolving Center
- Chucks
- Machine Lamp
- Coolant Pump & Electricals.
- Quick Change Tool Post
