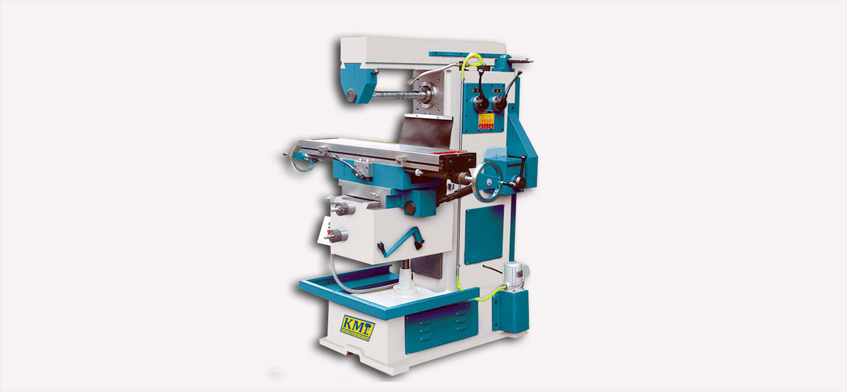

Universal Milling Machine
We feel proud to introduce ourselves as one of the well-known manufacturers and suppliers of Universal Milling Machine. The offered universal milling machine is widely used for the removal of unwanted materials from the work piece, by using rotary cutters. It is used in wood turning, metalworking, metal spinning, thermal spraying, parts reclamation, and glass-working. We offer these machines in several technical specifications to our valuable patrons at reasonable rates
|
MODEL |
KMT-1U |
KMT-1½U |
KMT-2U |
KMT-3U |
|
Face of Body |
228mm |
254mm |
279mm |
304mm |
|
Surface of Table |
1016 x 228mm |
1219 x 254mm |
1320 x 279mm |
1422 x 304mm |
|
No. of tee Slots |
3 |
3 |
3 |
3 |
|
Size of tee Slots |
12mm |
12mm |
16mm |
16mm |
|
Swivel either Side of centre line |
450 |
450 |
450 |
450 |
|
Longitudinal Traverse |
457mm |
533mm |
635mm |
711mm |
|
Cross Feed |
125mm |
203mm |
254mm |
304mm |
|
Vertical Traverse |
330mm |
406mm |
558mm |
660mm |
|
Standard Arbor |
1 |
1 |
1 |
1 |
|
Taper of Spindle |
ISO 40 |
ISO 40 |
ISO 40 |
ISO 40 |
|
No. of Spindle Speed |
152 |
228 |
228 |
228 |
|
Range of Spindle (RPM) |
45 to 550 |
40 to 675 |
40 to 675 |
40 to 675 |
|
Dia of Spindle in front of Bearing |
70 |
2¾ |
3 |
4 |
|
No. of Longitudinal feeds |
3 |
3 |
3 |
3 |
|
Motor Capacity (H.P.) |
2 |
2 |
2 |
3 |
|
Coolant Pump Capacity |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
0.1 H.P. |
|
Floor Space |
45 x 20 |
45 x 24 |
46 x 24 |
50 x 30 |
|
Weight |
900 Kg |
1300 kg |
1800 kg |
2100 kg |
Features
- High functionality
- Long working life
- Sturdy design
- Easy installation
